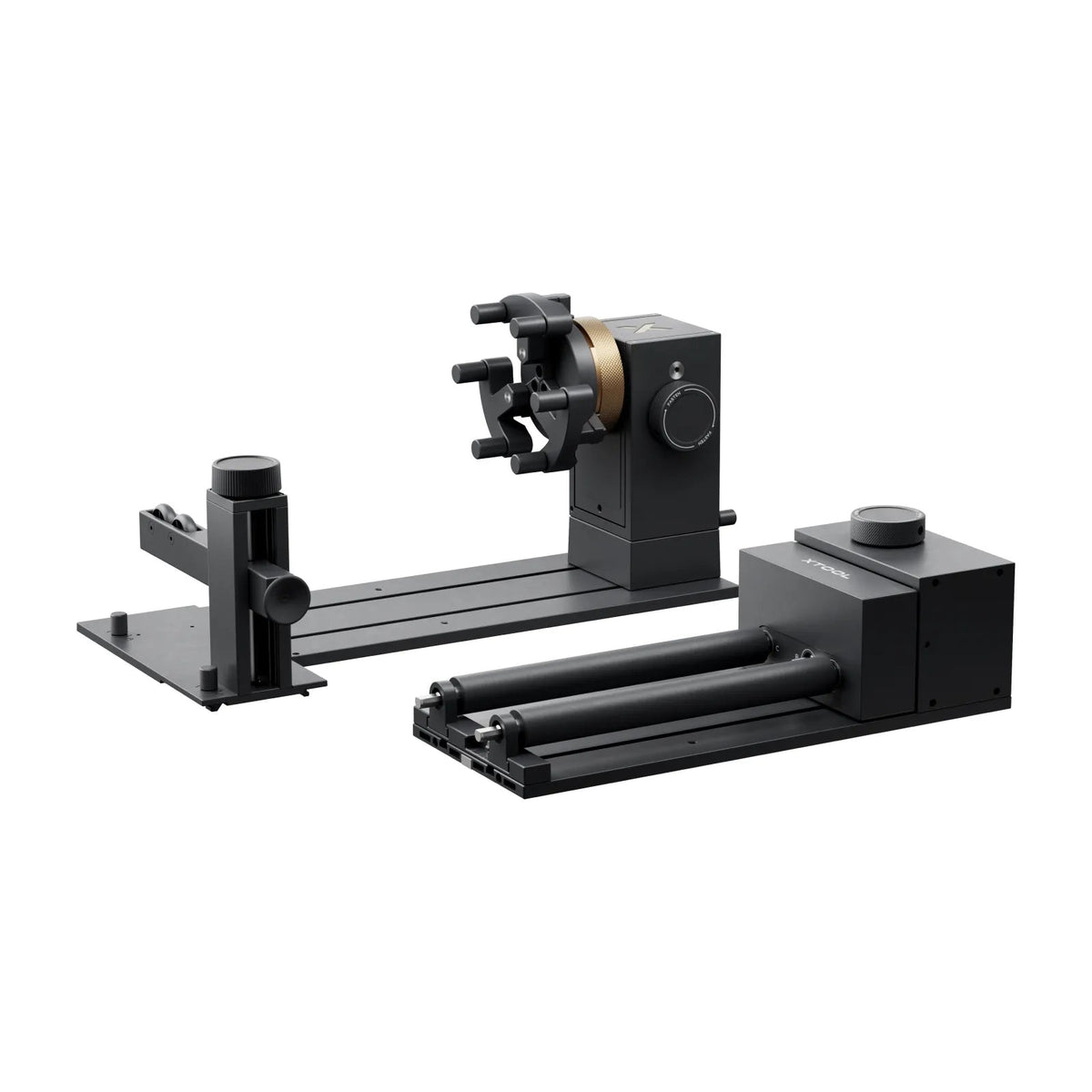

xTool RA3 for P/F Series Rotary Attachment

The xTool RA3 for P/F Series is a versatile rotary engraving attachment designed for supported xTool P Series and F Series laser machines. Its modular MagSwap™ system makes it easy to move between roller, chuck, sphere, and ring rotary modes, so you can engrave cylindrical, spherical, tapered, and ring-shaped objects with one adaptable platform.

Use the RA3 for personalized tumblers, mugs, rings, ornaments, spheres, vases, and other curved items. Magnetic, tool-free connections simplify assembly and attachment changes, while the redesigned T-type jaws provide additional contact points and support workpieces with diameters up to 130 mm.

Key Features

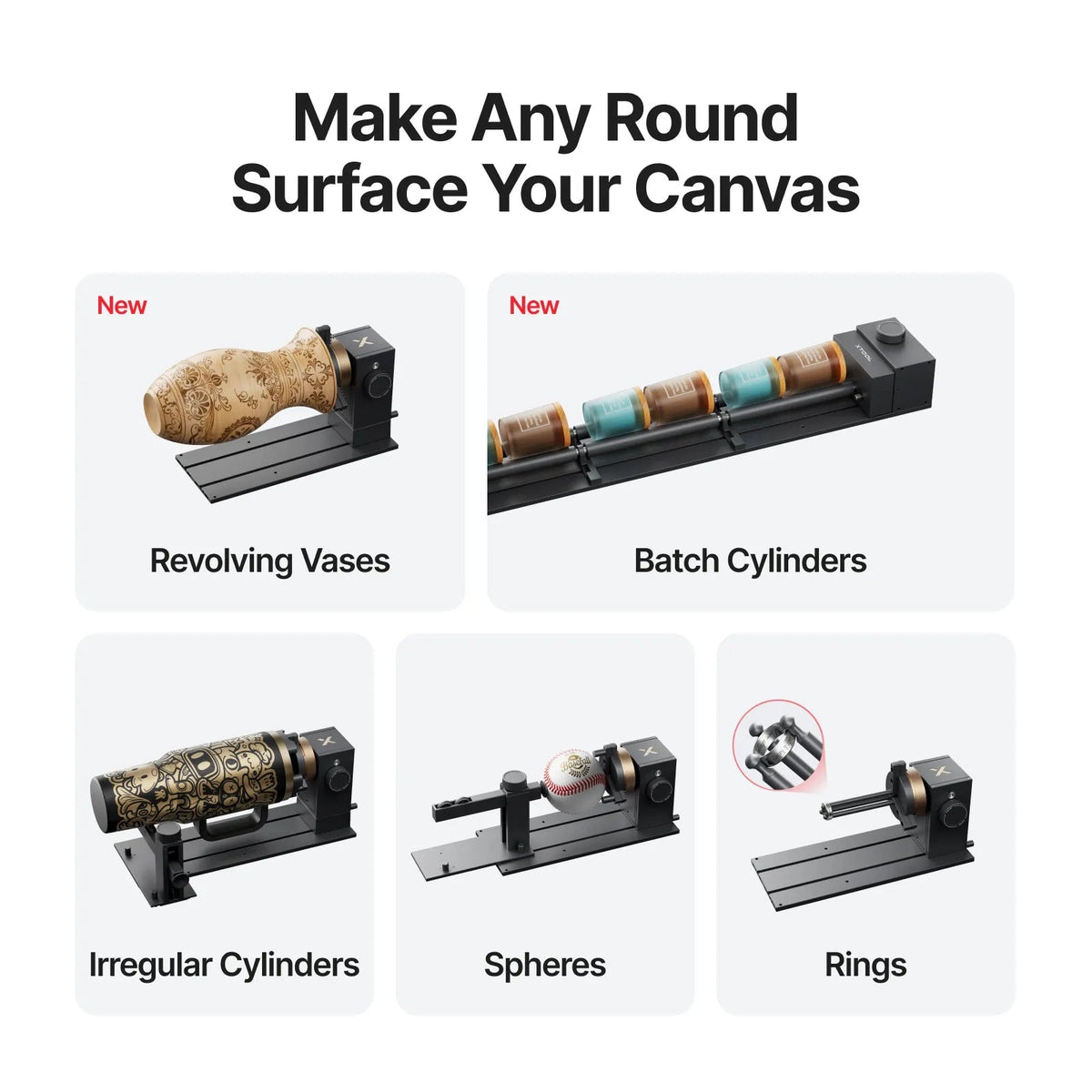

• Four rotary modes: Configure the RA3 for roller, chuck, sphere, or ring engraving.

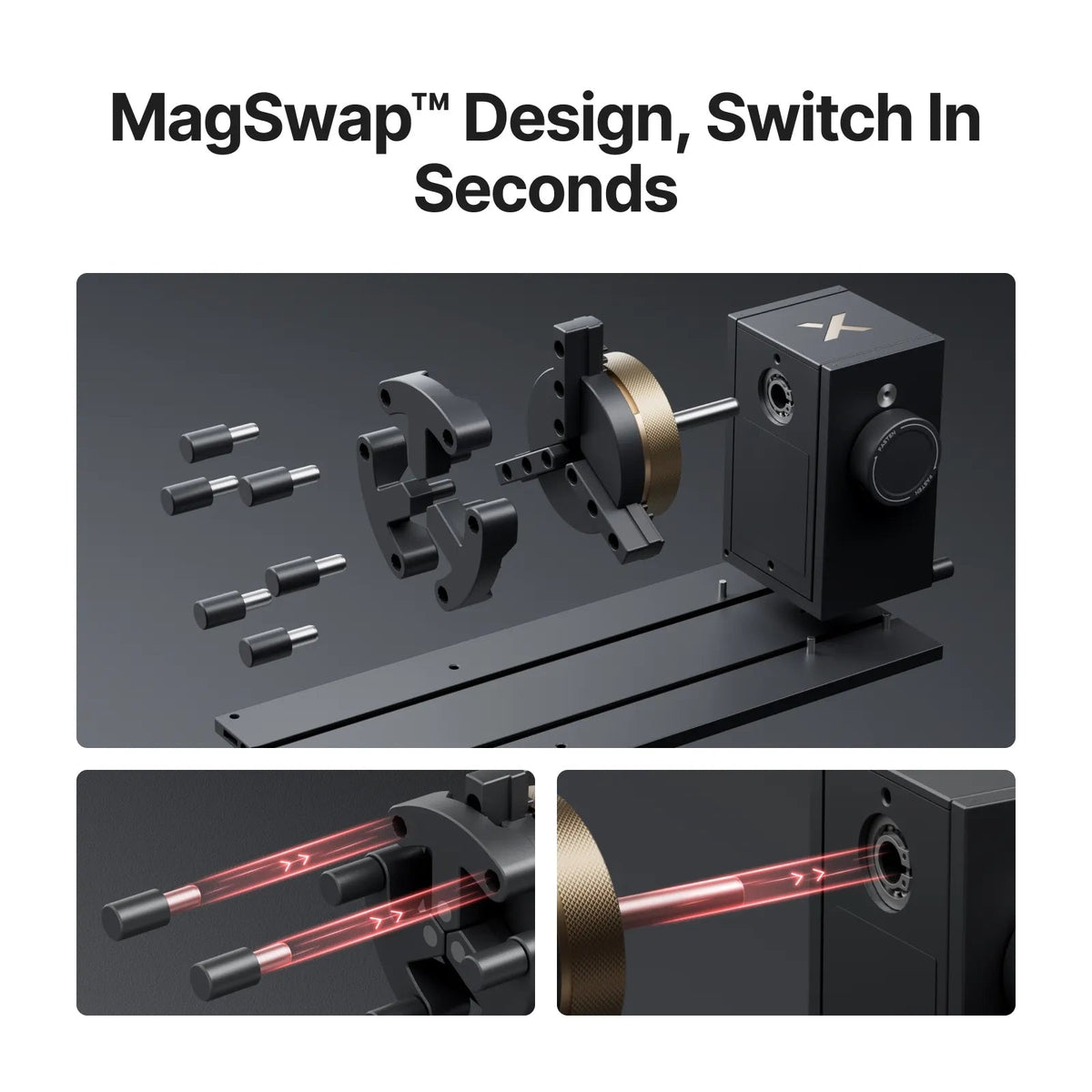

• MagSwap™ design: Assemble the rotary, reposition the jaws, and change attachments without tools or screws.

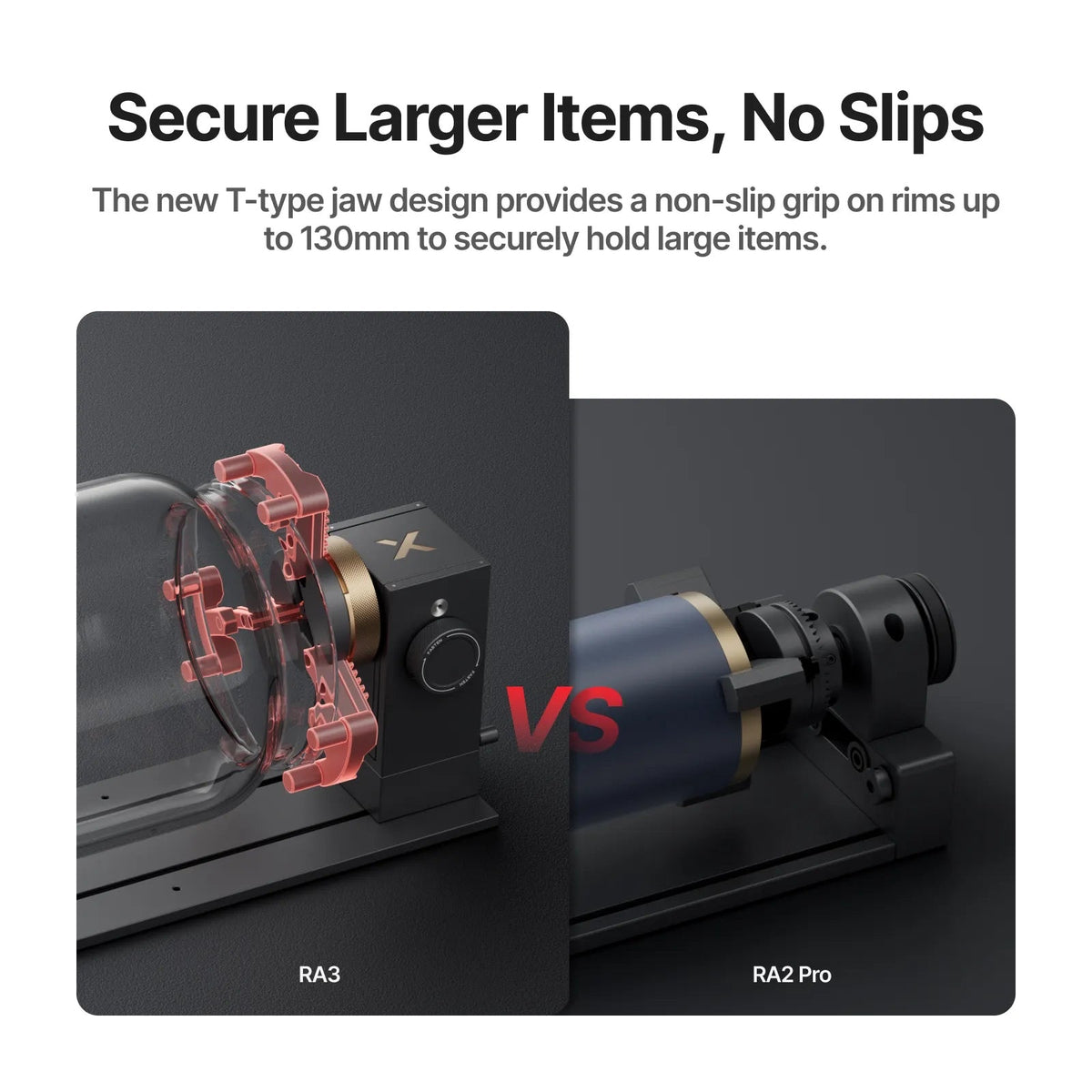

• Expanded capacity: The T-type jaw design securely holds larger workpieces with diameters up to 130 mm.
• Inner-ring positioning: A one-step adjustment sets the rotary to a 26° angle for inner rings and tapered objects.

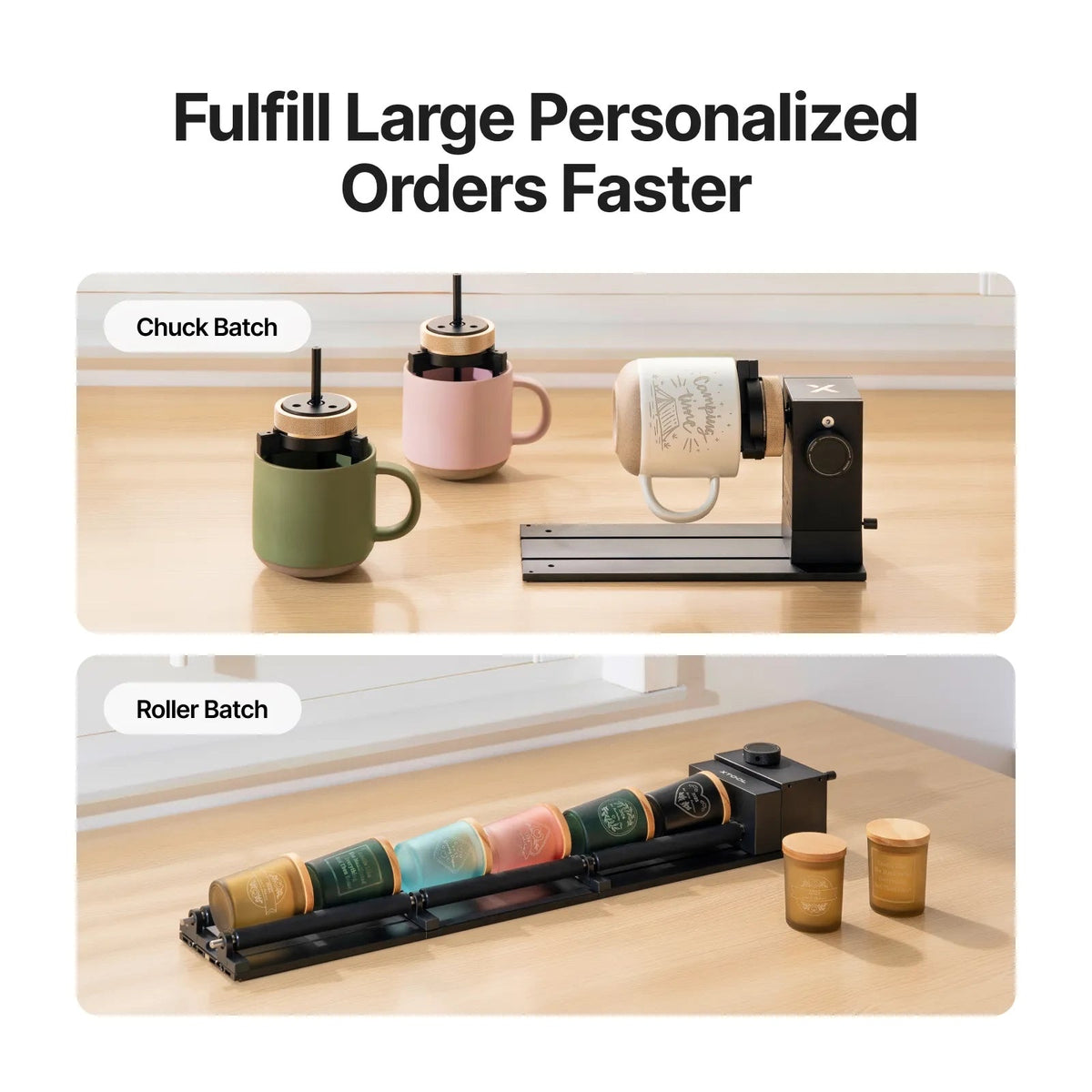

• Batch-ready workflow: Compatible RA3 Chuck Kit and Roller Extension Kit accessories support efficient production of multiple items.

Machine Compatibility

This configuration supports xTool P3 and most F Series machines, including xTool F2, F1 Ultra, F2 Ultra, and F2 Ultra UV. It is not compatible with xTool F1 or F1 Lite.

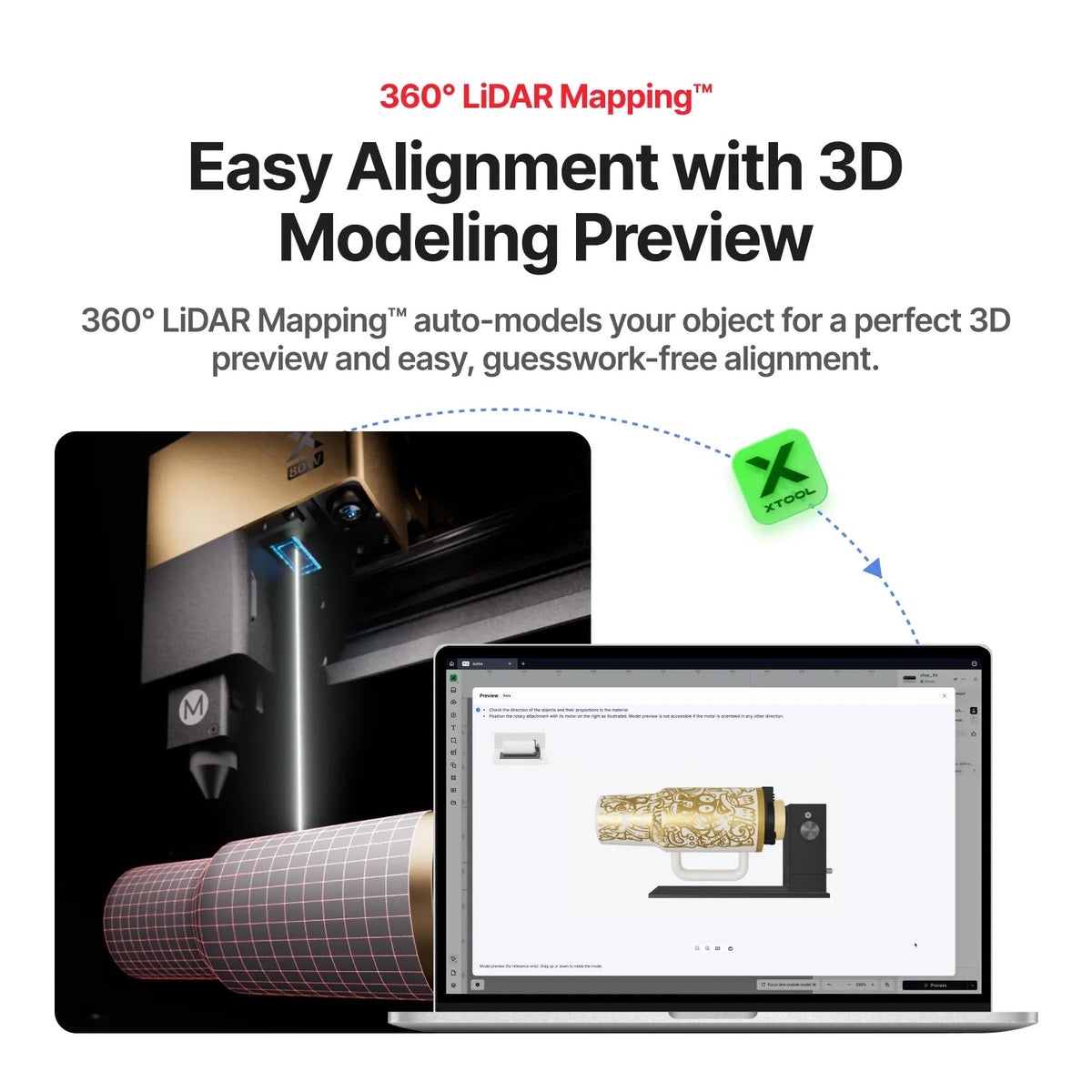

When used with the xTool P3, the RA3 works with the machine’s 360° LiDAR Mapping™ for automatic rotary-mode recognition, object measurement, autofocus, and a 3D preview that helps with alignment before engraving. F Series machines support the RA3’s rotary modes, MagSwap™ setup, and expanded jaw capacity, but do not support these LiDAR-based automated features because their hardware uses a vision camera rather than P Series distance-measuring sensors.
