Einstar 2

    Einstar 2

    $999.00
    $1,249.00
    {price}% OFF Sold out

    Description

    Specifications

    FAQ


    PC REQUIREMENTS

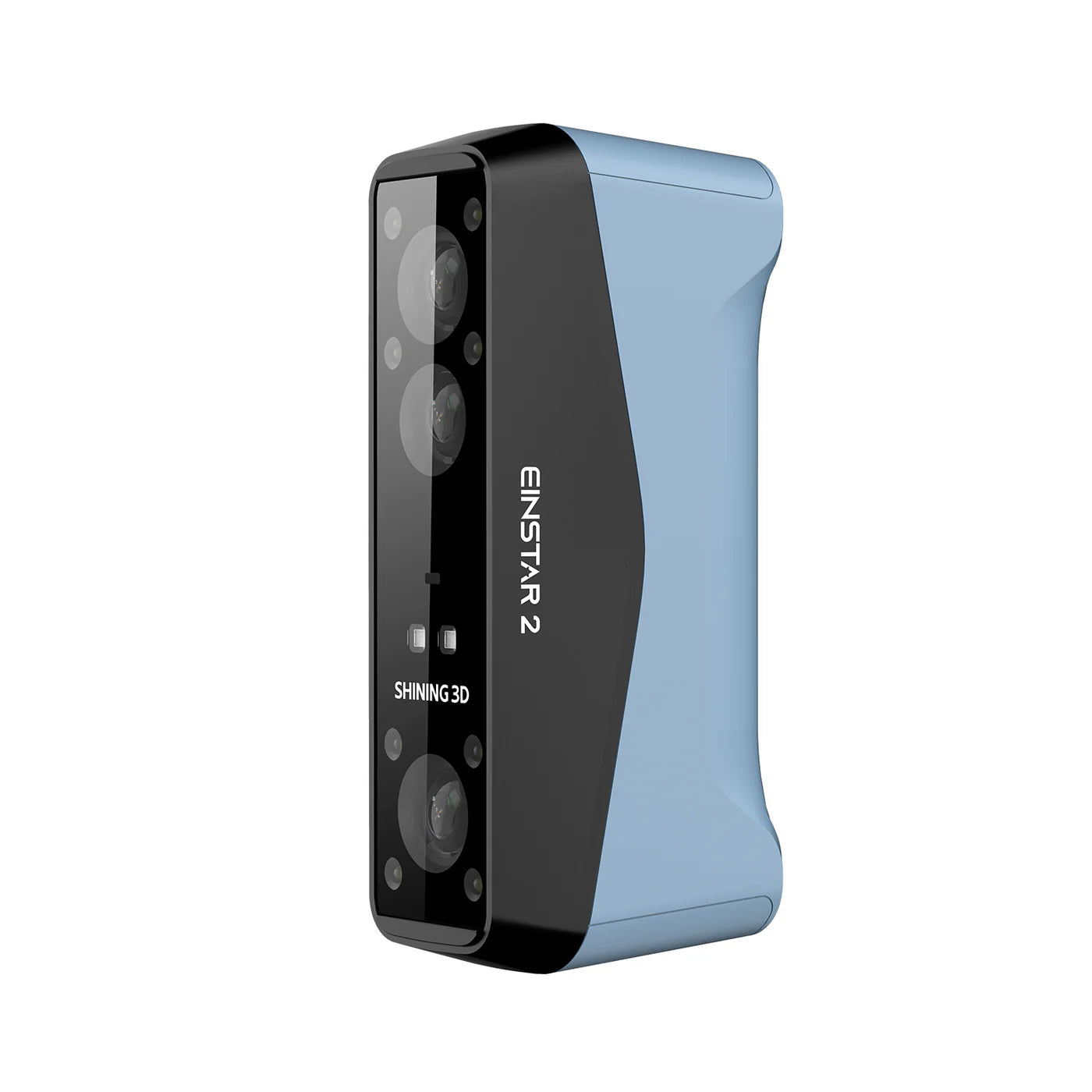

    EINSTAR 2 3D Scanner

    The EINSTAR 2 is a wireless 3D scanner that fits in the palm of your hand. Designed for flexibility and mobility, it features built-in Wi-Fi and hot-swappable batteries so you can scan anywhere without being tethered to a computer.

    From capturing detailed scans of people and artwork to reverse-engineering automotive parts, the Einstar 2 is built to handle a wide range of real-world applications with speed and precision.

    Key Features

    • 17 parallel scanning lines in Laser HD mode
    • Wireless operation
    • Built-in Wi-Fi connectivity
    • Easy-swap battery system
    • High-accuracy laser scanning
    • Color texture capture
    HEADING 1HEADING 2
    Scan ModeLaser HD IR Rapid
    ResolutionLaser HD .05-10mm IR Rapid .2-10mm
    Working DistanceLaser HD: 100 - 600mm IR Rapid: 160-1400mm
    Alignment ModeLaser HD: Global Marker/Markers IR Rapid: Global Markers/Markers/Features/Texture/Hybrid
    Camera Resolution 3D: 2MP x 2 Texture: 2.3MP
    HEADING 1HEADING 2
    Scan SpeedLaser HD: 17 parallel laser lines, 2.5 million points/second IR Rapid: 4.8 million points/second
    Light SourceLaser HD: 17 blue laser parallel lines IR Rapid: IR VCSEL
    Operation Conditions-10ºC – 40ºC
    Interface and PowerUSB Type-C 5500mAh*1 Battery Support 60W PD 3.0 charger
    Weight and Dimensions 130 x 37 x 61mm 420g (including batteries)

    FAQ

    1. Can the Einstar2 be used outdoors?
    Yes. The Einstar2 is designed for flexible use, including outdoor scanning environments below 110,000 Lux in Laser HD mode, and below 70,000 Lux in IR Rapid mode.

    2. Can the Einstar 2 capture color as well as shape?
    Yes. It captures full RGB color.

    3. Do I need a computer to scan?
    The scanner needs to be synced to a computer for scanning, either wirelessly or with a wired connection. The free ExStar Hub software runs on both Windows and Mac computers.

    4. What file formats does it produce?
    It produces STL, OBJ, PLY, 3MF, and ASC files.

    5. What's in the box?
    The Einstar 2 comes with the scanner itself, a carrying case, rechargeable batteries, a battery compartment and charging cable, calibration board, universal holder, power adapter, USB C to USB C cable, a screen protector, and 3mm and 6mm reflective markers.

    EXStar Hub Computer Specs

    System PlatformCPUMemoryGraphics Card
    Windows (10/11-64bit) Minimum RequirementsIntel Core i7 13th Gen/AMD Ryzen 7 5800≥32GBNVIDIA GeForce RTX 2060
    Windows (10/11-64bit) Recommended Configurationi9/R9 class or high-end i7/R7 class≥64GB dual channelRTX 3060 and above high-end models
    macOS (Tahoe 26.2 and above) Minimum RequirementsM1 Pro/M2 Pro/M3/M4/M5≥16GBIntegrated Graphics (Chipset)
    macOS (Tahoe 26.2 and above) Recommended ConfigurationM1 Max/M1 Ultra/M2 Max/M2 Ultra/M3 Pro/M3 Max/M3 Ultra/M4 Pro/M4 Max/M5≥64GBIntegrated Graphics (Chipset)
    * Macbook Air (M4 and above, RAM≥16GB) can be used, but due to its thin, fanless and lightweight design, it is prone to overheating, which may affect scanning efficiency.
